Get the necessary information for your projects quickly and easily

Jump To:
F-15 Mechanical Seam F-10 Nailstrip F-15 Snap Lock F-5V Crimp F-15 Nailstrip

F-15 Mechanical Seam

Product Page

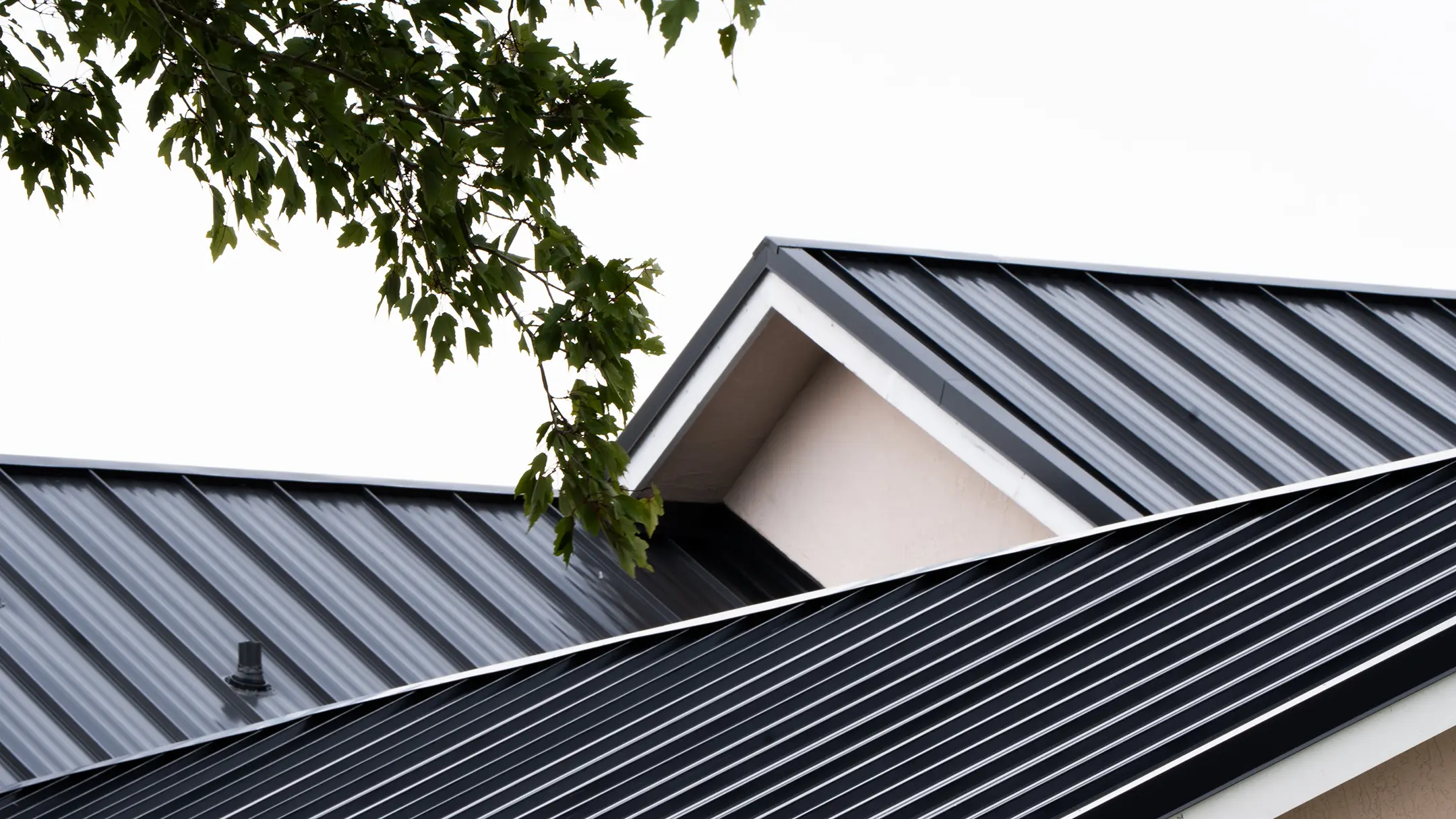

Close-up view of a modern house roof with black metal panels, featuring sharp angles and a small section of leafy tree branches in the top left corner against a white sky.
Download Metal Max. Width Substrate Fastener Clip Spacing Pattern Uplift Pressure PSF to MPH
download 26GA 16" 15/32" Plywood (Clip System W/ 90° Seam) #10 12" (2)/Clip 218.8 292
download .032 16" 15/32" Plywood (Clip System W/ 90° Seam) #10 16" (2)/Clip 138.5 233
download .032 16" 15/32" Plywood (Clip System W/ 90° Seam) #10 8" (2)/Clip 213.5 289

F-10 Nailstrip

Product Page

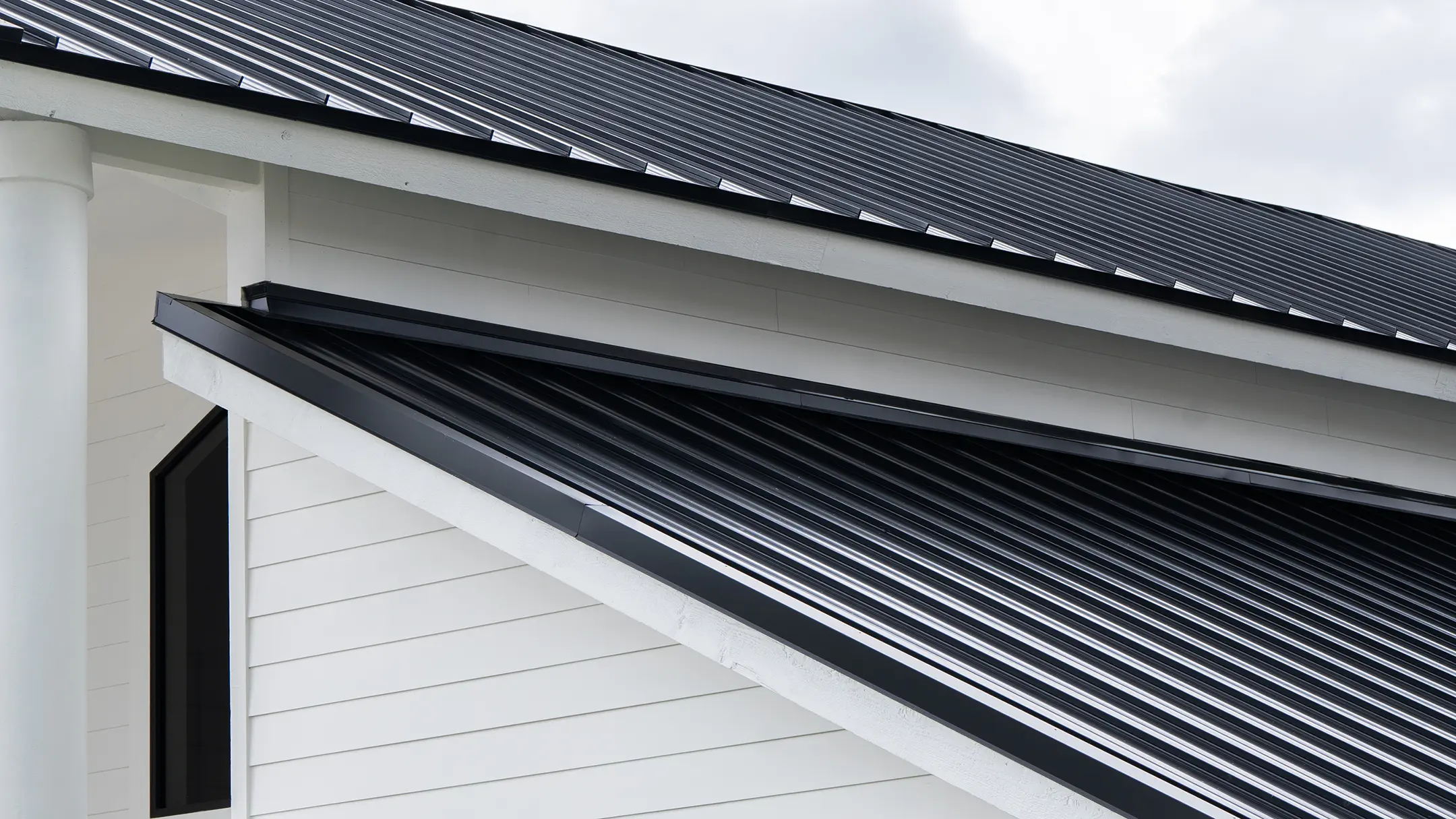

Close-up view of a modern building's exterior, featuring white horizontal siding and a black metal roof with clean, sharp angles. The image highlights the building's contemporary architectural lines.
Download Metal Max. Width Substrate Fastener Clip Spacing Pattern Uplift Pressure PSF to MPH
download 26GA 16" 15/32" Plywood (With Sealant) #10 6" N/A 116 213
download 26GA 16" 15/32" Plywood (With Sealant) #10 6" N/A 176 262
download .032 16" 15/32" Plywood (With Sealant) #10 6" N/A 175 261

F-15 Snap Lock

Product Page

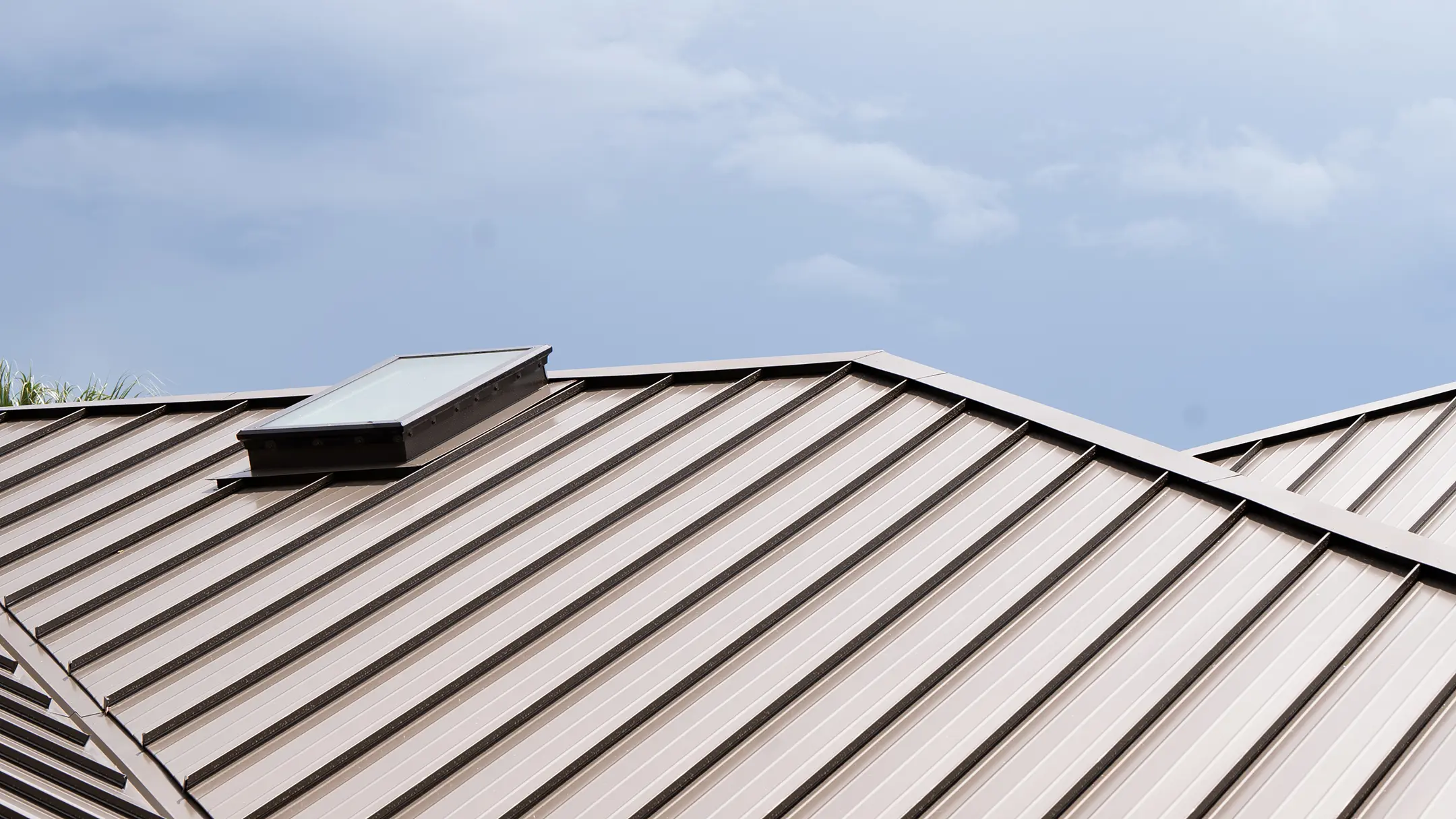

A close-up view of a light-colored metal roof with a rectangular skylight, set against a blue sky with light clouds.
Download Metal Max. Width Substrate Fastener Clip Spacing Pattern Uplift Pressure PSF to MPH
download 26GA 19" 15/32" Plywood (Clip System) #10 12" (2)/Clip 128.5 224
download .032 15.5" 15/32" Plywood (Clip System) #10 12" (2)/Clip 176 262

F-5V Crimp

Product Page

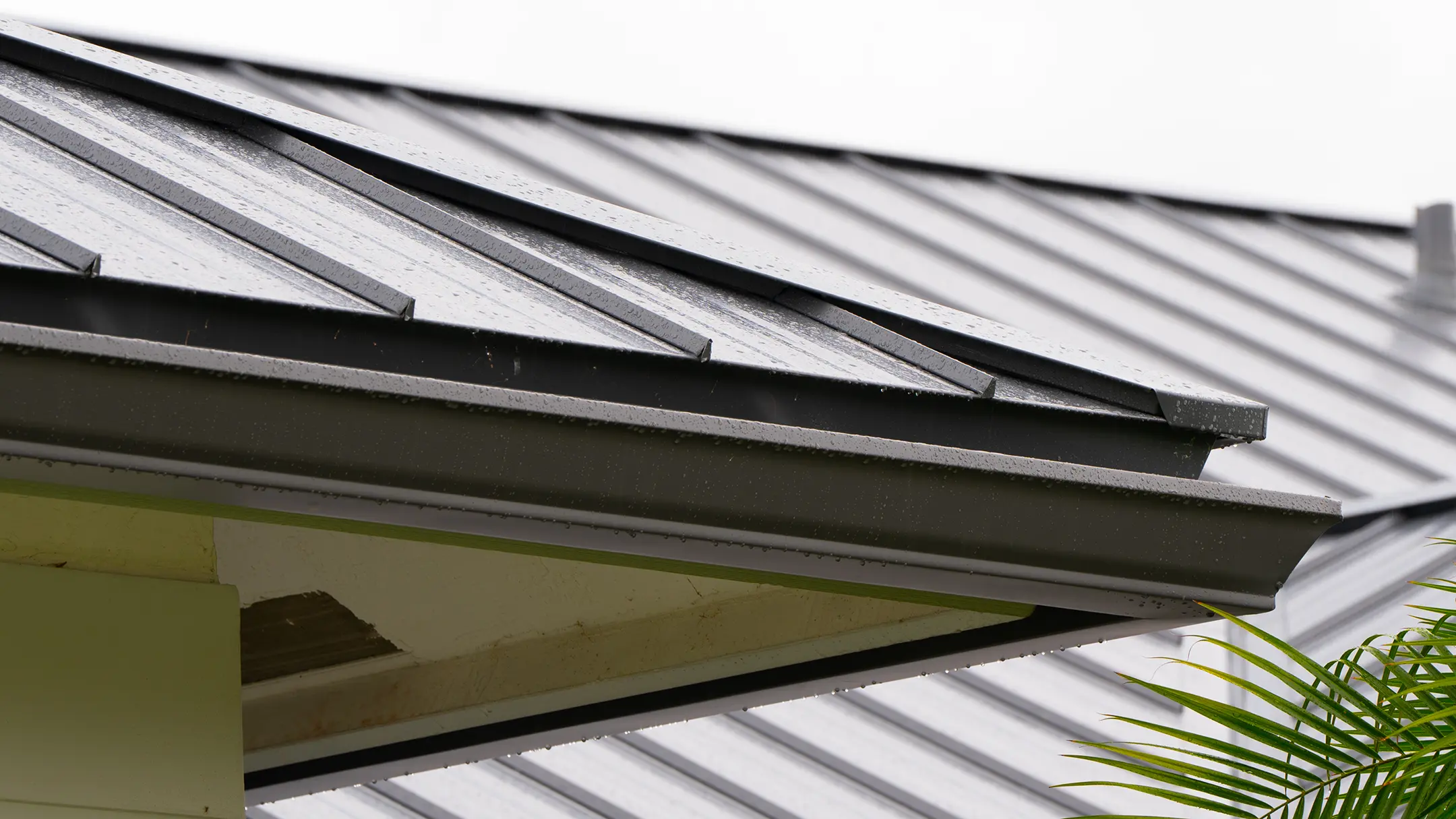

Close-up view of a metal roof and gutter on a building, with raindrops visible on the surface. A green plant is partially visible in the lower right corner against a cloudy sky.
Download Metal Max. Width Substrate Fastener Clip Spacing Pattern Uplift Pressure PSF to MPH
download 26GA 24" 15/32" Plywood #10 16" 12'’ - 12" 117.75 214
download 26GA 24" 15/32" Plywood #10 8" 12'’ - 12" 206 284
download .032 24" 15/32" Plywood #10 16" 12'’ - 12" 116.25 213
download .032 24" 15/32" Plywood #10 12" 12'’ - 12" 186.5 270

F-15 Nailstrip

Product Page
A modern house with a light-colored metal roof featuring a geometric dormer window, with palm trees and a blue sky in the background.
Download Metal Max. Width Substrate Fastener Clip Spacing Pattern Uplift Pressure PSF to MPH
download 24GA 19" 15/32" Plywood (With Sealant) #10 6" N/A 112.5 210
download .032 19" 15/32" Plywood (With Sealant) #10 6" N/A 168.1 256
