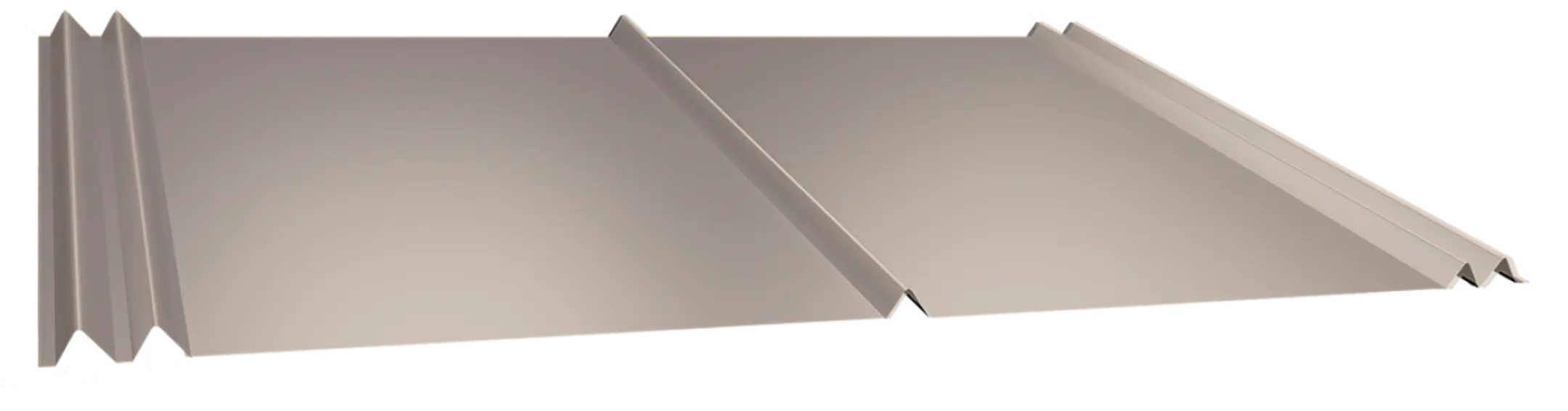

F-5V Crimp
Testing
Our metal roofing systems are battle-tested to stand up to even the most punishing conditions. F-5V is Florida Product Approved for use in HVHZ and non-HVHZ installations to deliver maximum performance and peace of mind.
| Description | Method |
|---|---|
| Uplift Resistance | UL 580, UL 1897, TAS 125 |
| Wind-Driven Rain | TAS 100 |
| Tensile Strength | ASTM E8 |
| Fire Rating | UL 790 |
| Salt Spray - Coating | ASTM B117 |
Product Features
- Ready for residential, agricultural, architectural & commercial operations

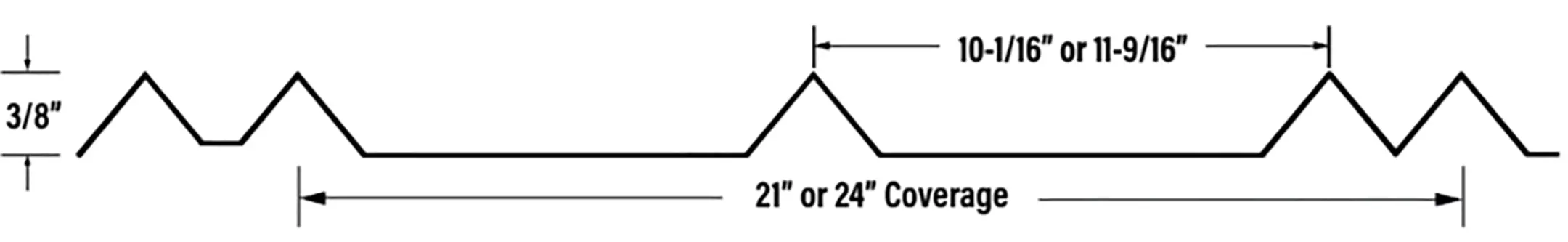

- 3/8” Double “V” profile for enhanced performance
- Low profile design for a sleek appearance
- Heavy gauge for battle-tested durability
- Easy to install exposed fasteners for fast and straightforward deployment
- Choose from striated, double-ribbon bead, or flat panel styles
- Available in over 30 tactical colors with custom options
- Custom lengths to fit any mission
- Onsite production at no extra charge
- Warranties on materials and finishes up to 40 years†
Specifications
MATERIAL: 24 and 26 ga. AZ50/AZ55; .032 and .040 Aluminum
SLOPE: Min. 1/2:12 (non-HVHZ), Min. 2:12 (HVHZ)
SUPPORT: 15/32″ (min.) plywood or 3/4″ (min.) wood plank
COVERAGE: 21″ or 24″
FINISH: 3/8″; 10-1/2″ or 12″ on center
SUSTAINABILITY: LEED eligible‡
QUALITY ASSURANCE: Keystone Certified
Metal Ops 5-Point Promise
Roofer Managed
Quality Metals
Expertly Fabricated
Field Experience
Customer Focused
FAQS
Your Metal Roofing Questions
Are metal roofs noisy during rain or hail?
Negative, metal roofs are not inherently noisy. Modern metal roofing systems are engineered with soundproofing in mind. When properly installed with solid sheathing or underlayment, they can be as quiet as any other roofing material. Additional insulation or soundproofing layers can also be deployed to further reduce noise.
Are metal roofs prone to rust?
Negative. Modern metal roofing products are coated with protective layers designed to resist rust and corrosion. Materials like galvanized steel, galvalume, and aluminum are treated to withstand the elements, ensuring long-lasting durability. Additionally, the coatings and pigments we use are the best in the industry, leveraging the full strength of Kynar 500. Our steel is cast and painted in the USA, utilizing American-made products crafted by American personnel.
Do metal roofs attract lightning?
Negative. Metal roofs do not attract lightning. Metal is no more likely to be struck by lightning than any other roofing material. In fact, metal roofs can safely disperse any lightning strikes through the roof into the ground, functioning similarly to other roofing systems.
Will a metal roof make my house hotter in the summer?
Negative, a metal roof can actually help keep your home cooler. Metal roofs reflect sunlight and absorb less heat compared to traditional roofing materials. Many metal roofing systems are coated with reflective finishes that enhance energy efficiency by reducing heat absorption. Lighter colors will reflect more heat than darker colors. Additionally, proper attic ventilation can significantly help manage attic temperatures.
Are metal roofs environmentally friendly?
Affirmative. Metal roofs are considered environmentally friendly. They are often constructed from recycled materials and are fully recyclable at the end of their service life. Additionally, their energy efficiency helps reduce heating and cooling costs, contributing to a smaller carbon footprint.
Have more questions? We’ve got the answers.
